General

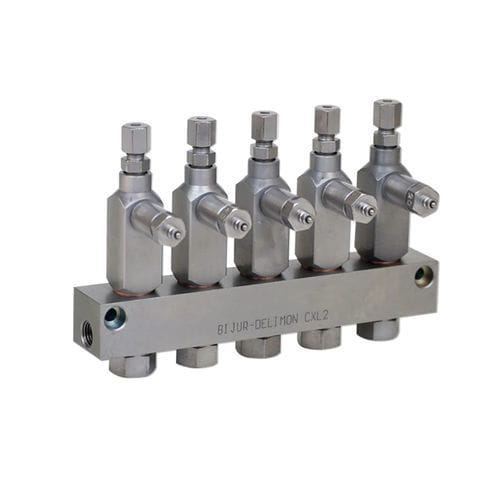

Designed for use in single line high pressure automatic grease systems, CXL2 Injectors deliver
precise volumes of lubricant at predetermined intervals. Injectors are mounted in manifolds in close
proximity to the points of lubrication. A wide selection of discharge rates, combined with a corrosion
resistant finish, make this product ideally suited for mobile, wind and a broad selection of general
industrial applications.
Operation
Lubricant introduced under pressure at the inlet moves the injector piston forward. The piston
displaces a pre charge of lubricant from the discharge chamber through the outlet check valve and
through the feed line. When system pressure is relieved, the piston returns to its rest position,
transferring lubricant stored in the measuring chamber to the discharge chamber. The injector is
then ready for the next discharge cycle.
Features
+ Precise, dependable operation, no special tools required
+ Visual indicator pin for inspection and troubleshooting
+ Positive displacement output
+ Easy to understand, install and service
+ Injectors mount in any orientation
+ Single supply line means lower installation cost
+ Corrosion resistant for harsh environments
