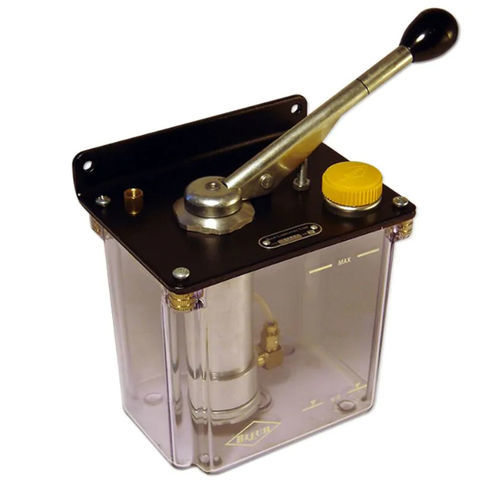

Oil pump L18P

manualpistonmobile

Lubricator is of the spring discharge type. It is operated by pushing the lever down, which raises the piston and compresses a spring. By releasing the lever, discharge of oil into the system is automatic. Discharge volume and pressure are independent of oil viscosity. Ftëservolr Capacity: 1.5 liters Lubrlcator Inlet Fllter: 40 micron particle séparation. It should be inspected periodically and cleaned or replaced as required. Dlscharae Pressure: 65 psi maximum. Discharge pressure will decrease as discharge volume decreases and the number of Meter Units increases. Dlscharae Volume Per Stroke: 6to 18ccs infinrtely adjustable. Lubricator supplied set for 18cc discharge. System & Limitations: Use Meter Units Type F. 70 Meter Units. System 0 Limitation is given in table below. Do not exceed figure shown. To calcülate system 0, refer to "Engineering Manual." Viscosity range is 150 to 8000 SSU at operating temperature.
