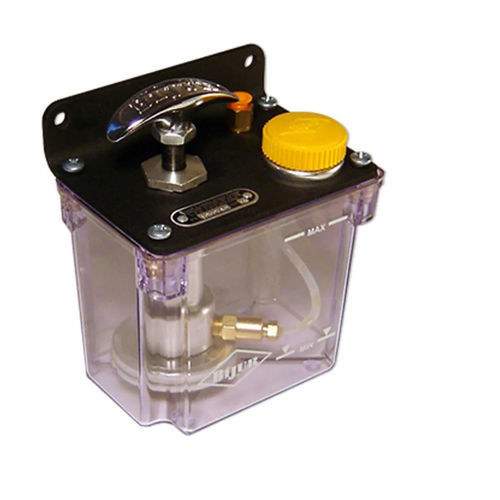

Piston pump L5 series

oilmanualmobile

Lubricator includes a spring return piston pump. When the tee-handle is fully raised, a predetermined volume of oil fills the cylinder and the pump spring is compressed. Releasing the handle forces oil into the distribution system. Lubricator will deliver 5cc per stroke of the piston. The lubricator should be operated at intervals recommended by the machine manufacturer. Startup Instructions Fill reservoir; operate lubricator until oil flows freely at all bearings. Maintenance Filter Replacement A filter at pump inlet protects the lubricating system and should be inspected every six months. If not clean, replace. To remove filter, pry out snap ring with screwdriver and remove filter disc and screens. To re-install, insert in the following order: filter disc support (coarse screen), filter disc screen (fine screen), filter disc, filter clamp ring, and filter snap ring Service Parts Order service parts by part number and description shown in table. Include complete part number and serial letters of the lubricator as shown on the nameplate. Example: S109 Filter Group for Lubricator D3274C Serial JI. For major repairs requiring parts not identified on the drawing, return lubricator for factory rebuilding and adjustment. If a new lubricator is required for replacement, order by part number shown on nameplate.
