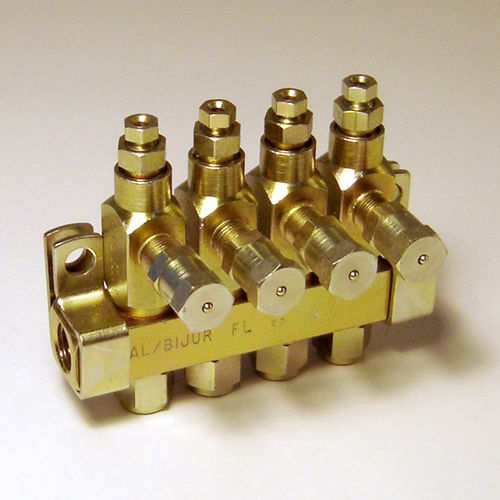

Grease injector FL-32

Single and manifold injectors are adjustable up to 0.131 cc (0.008 cubic inches) discharge per cycle. Each manifold includes two mounting clips and screws (1/4” – 20 thread x 1/2” long hex head). Adjustment Injector output is controlled by the position of the indicator cap. The location of the cap determines the travel of the discharge piston. When the indicator is fully tightened onto the measuring chamber, lubricant output is decreased to a minimum. Retracting the indicator cap five full turns permits a maximum of .008 cu. in. to be discharged. Turning the indicator cap beyond five full turns will not increase lubricant output. When the individual injector has been adjusted to the desired output, tighten locknut against face of the indicator cap.
