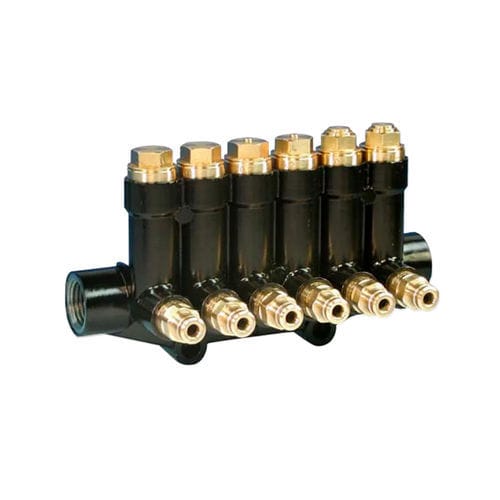

Grease injector VXLO series

The VXLO Injector meters and displaces positive volumes of lubricant to individual lubrication points. Each injector in a system is independent of each other. The volume displaced by each injector is controlled by the interchangeable metering screws. These injectors are indirect feed (post fire injectors), discharging lubricant to the lubrication point via spring force when mainline pressure is relieved. The total volume of lubricant fed to each point is dependent on the metering screw rate and the cycle frequency of the lubricator. Operation Once mainline pressure begins to increase, the valve within each injector seals off the lubricant path to the discharge outlet. Lubricant is thereby stored beneath the discharge piston. As soon as mainline pressure is relieved, i.e. when the lubricator stops and the dump valve opens, the spring loaded piston delivers lubricant through the outlet to the lubrication point. Features + Wide range of discharge rates + Quick connect outlet fittings for faster installations + Indirect (post fire) injectors ensure delivery of grease to loaded bushings and pins + Corrosion resistant finish
