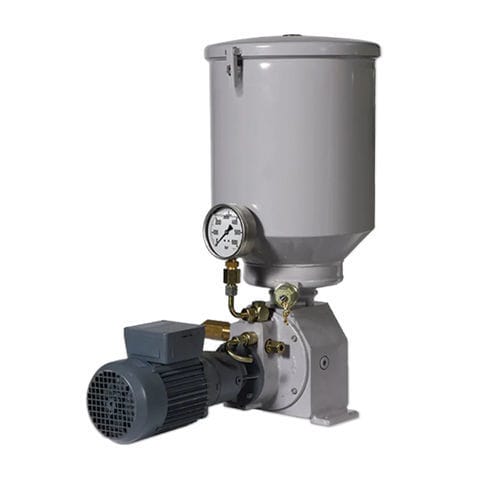

Electric grease pump BM-B

The BM-B Lubricator is ideally suited to be the heart of a lubrication system where electricity is available to power the lubricator. These pumps are robust for harsh and severe applications and their compact construction of high-grade steel gives them a long service life. Application The BM-B pump, because of is constructional characteristics, may be used in single line, dual line, progressive and spray lubricating systems. Regardless of the number of lubrication points, the pump can be effectively adapted to meet any requirements. It can also be used for refilling and mobile greasing systems. Operation Normally, the pump is supplied as a complete electric motor-driven package. The BM-B is a valveless positive displacement pump consisting of a series of pistons actuated in a controlled sequence by an eccentric cam and an integral lubricant reservoir. The motion develops a controlled suction and discharge action, producing a rugged, trouble-free lubricator. A pressure relief valve is incorporated into the BM-B pump. This device can be adjusted to control operating pressure to the centralized lubricating system. Various electric geared motors are available (See How to Order chart specifying motor sizes and characteristics to output capacities). Features + High reliability due to forced control + Pump can be supplied complete with a geared motor + Long service life thanks to the use of wear-resistant high-grade steel + Compact and rugged design + Surface signal grey RAL 7004
