Oil pump ADM series

with electric motorgearmobile

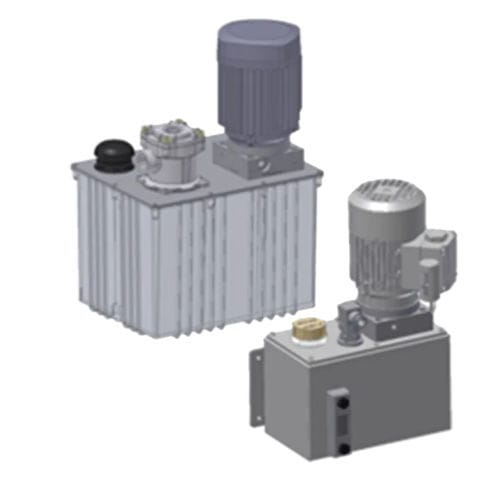

The gear pumping unit AD-M is predominantly used in medium-sized machine building applications for single-line centralized lubrication systems. Substantially consisting of a gear pump with AC motor, it can be supplied with and without reservoir. Pump and motor are firmly screw-connected with each other. For attachment to the tank, the gear pump features a flange with inserted seal ring, fastening as such being implemented by means of 4 screws. The reservoir made from oil- and impact-resistant 6-mm-thick plastic has 2 mounting flanges on either side of its backside. Oil gages serve to indicate the oil level. Each of the fastening threads comes with a metallic insert in the plastic material, thereby ensuring permanent durability and a long service life even in case of frequent screwing in and out. The pump is equipped with a relief valve to relieve the pressure line when the pump motor is cut out. On reaching specified pressure, a pressure relief valve opens and thus keeps any detrimental overpressure away from the pump. An air-relief valve prevents air from being introduced into the pressure line and enables quick venting of the gear pump during system startup. PRODUCT CHARACTERISTICS Gear pump technique Lubricants: oil, liquid grease Discharge pressure max. 30 bars Surface signal grey RAL 7004 PRINCIPLE OF OPERATION After the electric current supply has been switched on, the gear pump starts immediately delivering lubricant. The integrated pressure relief valve opens at a pressure of more than 3 MPa (30 bar) and thus prevents the gear pump from being overloaded.
