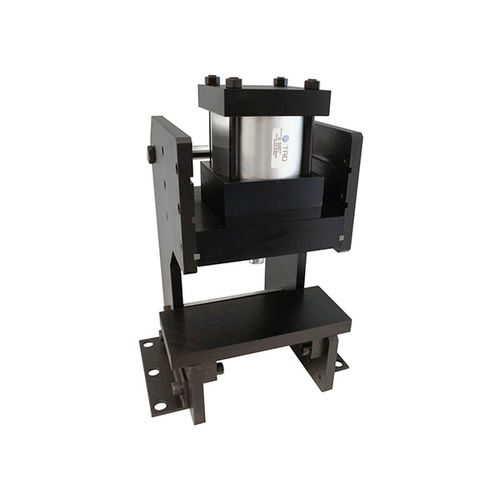

Pneumatic press MSEP-MX3-5x0.125x2Sformingframebench-top
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Function
- forming
- Structure
- frame
- Other characteristics
- vertical, bench-top
- Applications
- for aluminum
- Opening
5 in, 7 in, 9 in
- Stroke
Max.: 6 in
Min.: 1 in
- Overall length
12 in
- Overall width
15 in
- Overall height
13 in, 15 in, 17 in
Description
Bimba's multi-stage bench top press feature multi-stage, double acting cylinders, which multiplies the output force by supplying air to multiple pistons. The MSEP multiplies the force on the extend stroke and uses one piston on the return stroke, saving air volume and operating costs. The MSEP / MSRP multiplies the force in both directions.
•Easy to assemble, or can be ordered fully assembled
•Double rod end style available on all models
•Choose from 2, 3, 4, or 5 stages
•Press can provide up to 12,000 lbs of force
•All cylinders use a permanent lubrication design which provides outstanding service life
