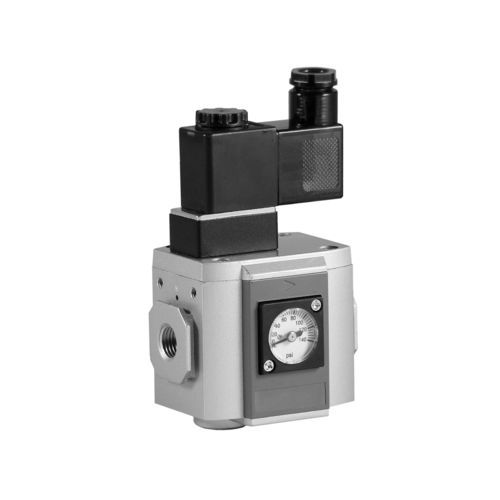

Soft-start valve MGV seriesdiaphragmpneumatically-operatedfor control
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- pneumatically-operated
- Function
- for control
- Media
- for air
- Body
- alloy, aluminium
- Applications
- gauge, coil, LED
- Number of channels
- 3/2-way
- Associated function
- soft-start
- Other characteristics
- DIN, pneumatically-operated
- DN
Min.: 0.125 in
Max.: 0.5 in
- Pressure
Min.: 35 psi
Max.: 130 psi
- Temperature
Min.: 0 °F
(-18 °C)Max.: 160 °F
(71 °C)
Description
Soft-start valves allow pneumatic components to be pressurized slowly for safety and control. MGV series soft-start valves are available with port sizes from 1/8" NPT to 1/2" NPT and either 24 VDC or 120 VAC solenoids. Start speeds are adjustable and a mounting bracket and integrated gauge are included. Available with DIN/LED connector or explosion proof coil.
• Type: Solenoid operated, 3/2 soft-start
• Proof pressure: 215 PSI
• Voltage: 24 VDC or 120 VAC
• Class B insulation
