Custom lead screw CUSTOMIZED THREADED SCREW WITH SHANK MACHINING
stainless steelaluminumwith nut

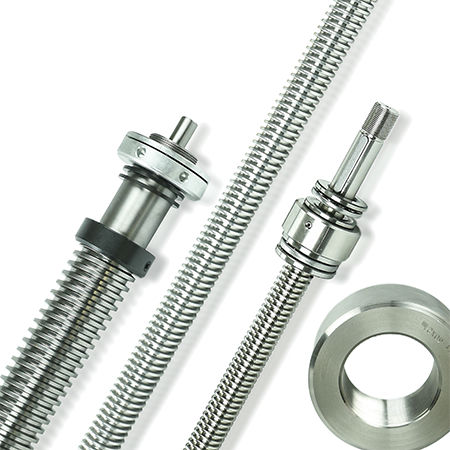

Custom lead screw - CUSTOMIZED THREADED SCREW WITH SHANK MACHINING - Bimeccanica s.r.l. - stainless steel / aluminum / with nut

Custom lead screw - CUSTOMIZED THREADED SCREW WITH SHANK MACHINING - Bimeccanica s.r.l. - stainless steel / aluminum / with nut - image - 2

Custom lead screw - CUSTOMIZED THREADED SCREW WITH SHANK MACHINING - Bimeccanica s.r.l. - stainless steel / aluminum / with nut - image - 3

Add to favorites

Compare this product

Characteristics

Type

custom

Material

stainless steel, aluminum

Other characteristics

with nut, fine-pitch thread

Diameter

Max.: 100 mm
(3.937 in)

Min.: 10 mm
(0.3937 in)

Description

BIMECCANICA SRL can provide their threaded rods cut to length and shanks machined according to customer design. The processes executed in our workshop are: CUT TO SIZE TURNING MILLING KEY SEAT DRILLING COUPLING THREAD IN PHASE for realization of threaded bars longer than 6 meters SMOOTHENING OF THREAD PROFILE SPECIAL THREADS Our factory is equipped to work without any problems threaded shafts from Ø10 to Ø100 with length of 6 meters. BIMECCANICA SRL produces only threaded bars made for removal with precision machine tool, each single production lot is controlled in order to guarantee the quality of product; we can guarantee pitch accurancy and linearity of screw . TECHNICAL FEATURES: pitch accuracy +/- 0.1 to 300 mm Precision class for coupling 7e linearity 0.1 / 0.2 mm in 1000 production of right hand scews and left hand screws MATERIALS steel 11SMnPb37 steel grade 36SMnPb14 Hardened steel 39NiCrMo3 Stainless steel AISI 303 Stainless steel AISI 304 Stainless steel AISI 316 Aluminium alloy 6026/6060/6082
