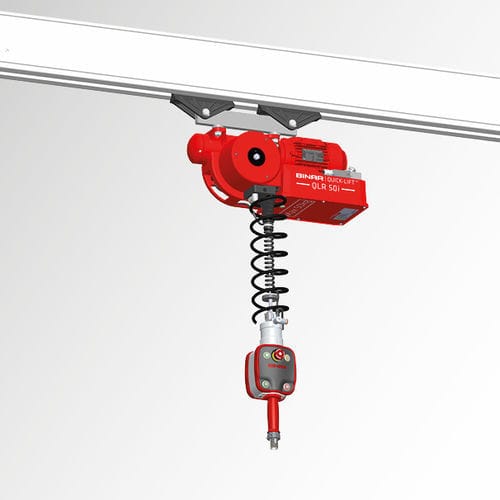

Pneumatic manipulator QLR 50i

mechanicalelectricwith gripping tool

The Quick-Lift Rail 50i is an intelligent lifting device that meets the highest standards of ergonomics, working environment, safety and efficiency. The QLR 50i is easy to use, thanks to outstanding reaction and it is also equipped with the best auto balancing available, regardless of load weight. Exceptional safety is achieved using our intelligent control systems. The QLR 50i enables high-cost efficiency through low power consumption, high reliability and long durability. Lift motor Stepless servo-controlled asynchronous motor. Maneuvering Manoeuvring is done by using a patented manoeuvring handle or balancing mode. Both options sense the operator’s hand/arm movement and give an exact and smooth speed control. Only a small force is needed to engage the up/down motion. When the operator lets go of the handle, the up/down motion is immediately stopped. Power supply 230V, 50-60 Hz, 1-phase with ground protection, 10A. Attachment The QLR 50i can be mounted in most common rail systems. Existing rail systems can often be used. End effector Customized end effectors are designed to fulfill customer’s requirements. Intelligent I/O signals are available for optimum function. Options - Parking brake - Stop-and-Go System - Mounting bracket for pin diameter 16 mm. For more available options, see document: Options
