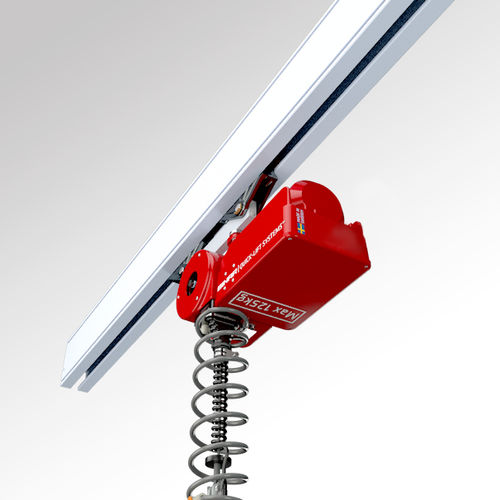

Overhead rail-mounted manipulator QLR 125i

servo-drivenfor liftingergonomic

Intelligent lifting device which meets the highest standards of ergonomics, working environment, safety and efficiency. Easy to use, thanks to outstanding reaction, regardless of load weight. Exceptional safety is achieved using our intelligent control systems. The best auto balancing available, regardless of load weight. High-cost efficiency through low power consumption, high reliability and long durability. Lift motor Stepless servo-controlled asynchronous motor Weight 28 kg Manoeuvring Manoeuvring is done by using a patented manoeuvring handle or balancing mode. Both options sense the operator’s hand/arm movement and give a very exact and smooth speed control. Only a small force is needed to engage the up/down motion. When the operator lets go of the handle, the up/down motion is immediately stopped. Power supply 230V, 50-60 Hz, 1-phase with ground protection, 10A Attachment The QLR 125i can be mounted in most common rail systems. Existing rail systems can often be used. End effector End effectors are designed to fulfill customer’s requirements. Intelligent I/O signals are available for optimum function. Options - Parking brake - Stop-and-Go System - Mounting bracket for pin diameter 16 mm. For more available options, see documents: Options
