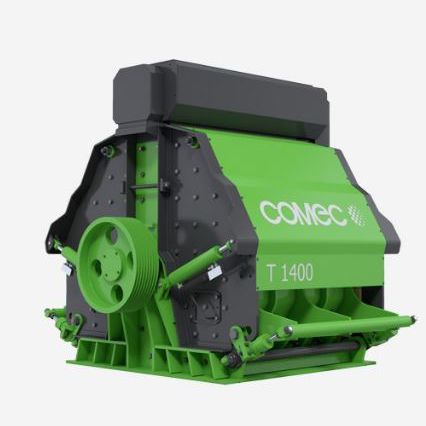

Impact crusher R-T-MV series

stationarycompacttertiary

The crusher for any task - from coarse rock dust to sand Task Impact crushers comminute the most different kinds of rock into cubic form, while the proportion of fines is kept as low as possible. Solution The COMEC range includes three impact crusher versions: Version R – for a feeding grain size up to 150 mm (in a closed circuit with preliminary scalping at 25 mm). Series R are fitted with a rotor with 4 beater blades. Version T – for a feeding grain size up to 100 mm (in a closed circuit with preliminary scalping at 10 mm). Series R are fitted with a rotor with 3/4 beater blades. Version MV – for a feeding grain size up to 50 mm (in a closed circuit with preliminary scalping at 5 mm). Series R are fitted with a rotor with 2/3 beater blades. Serial manganese steel beater blades and armourings ensure maximum service life. For applications with abrasive material, the impact crusher are fitted with beater blades and armourings made of a highly wear-resistant alloy. Benefit COMEC impact crushers enable optimum grain form and a low level of fines in the most various applications. Hydraulic systems allow easy access for both maintenance and servicing. Due to reversible rotation, the beater blades have a considerably higher service life.
