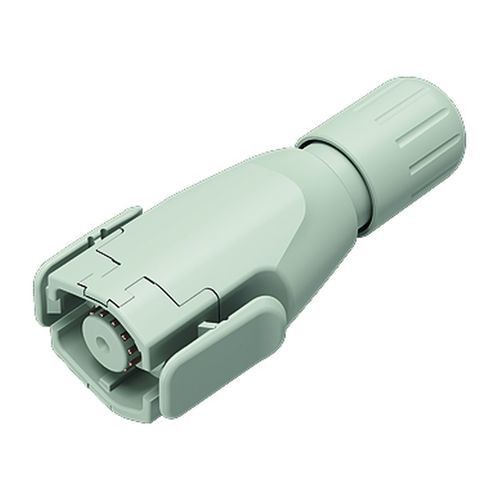

Male connector 99 1721 002 12electrical power supplyweldlocking
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Connection type
- male, locking, weld
- Electrical characteristics
- current, voltage
- Product applications
- cable
- Domain
- medical
- Protection class
- IP54
- Primary current
2 A
- Voltage
150 V
- Operating temperature
Min.: -25 °C
(-13 °F)Max.: 85 °C
(185 °F)
Description
Snap-In Male cable connector, Contacts: 12, 4.0-6.0 mm, unshielded, solder, IP54
ELC, series 570, Connectors for medical applications
This male cable connector with snap-in locking system and a pin count of 12 is according to its protection class IP54 Geschützt gegen Staub in schädigenThis Menge. Vollständiger Schutz gegen Berührung. Schutz gegen allseitiges Spritzwasser. It can be used in areas with a pollution degree of 2. In places where light, non-conductive soiling may occur, but temporary conductivity due to condensation must be expected in some cases. With temperatures ranges of -25 °C/85 °C is this unshielded ELC male cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 150 V and the rated current of 2,0 A it is perfectly tuned for its field of application.
