Fixed electrical plug 99 0771 000 08immersionIP67bayonet
Add to favorites
Compare this product
Characteristics
- Mounting
- fixed
- Protection level
- immersion, IP67
- Features
- bayonet
- Current
7 A
Description

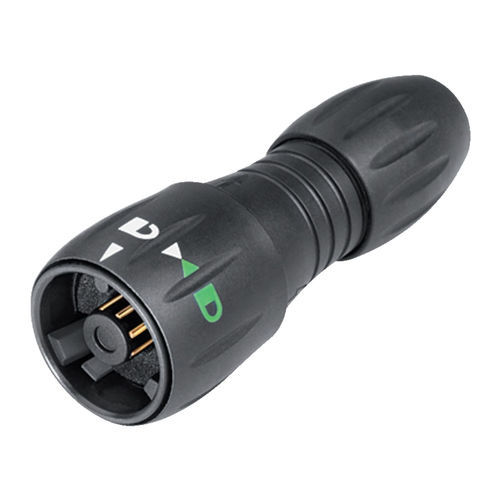

This male cable connector with bayonet locking system and a pin count of 8 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 2. In places where light, non-conductive soiling may occur, but temporary conductivity due to condensation must be expected in some cases. With temperatures ranges of -25 °C/85 °C is this unshielded bayonet NCC male cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 175 V and the rated current of 2,0 A it is perfectly tuned for its field of application.
Catalogs
CORE PROGRAM
236 Pages
INDUSTRY MINIATURE
75 Pages
