Electrical power supply connector 77 5429 0000 50704-0200DINEthernetmale
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Format
- DIN, Ethernet
- Connection type
- male
- Size
- M8
- Electrical characteristics
- current, voltage
- Material
- PUR
- Product applications
- cable
- Protection class
- IP67
- Other characteristics
- immersion, shielded, ProfiNet
- Primary current
4 A
- Voltage
63 V
- Operating temperature
Max.: 85 °C
(185 °F)Min.: -25 °C
(-13 °F)
Description

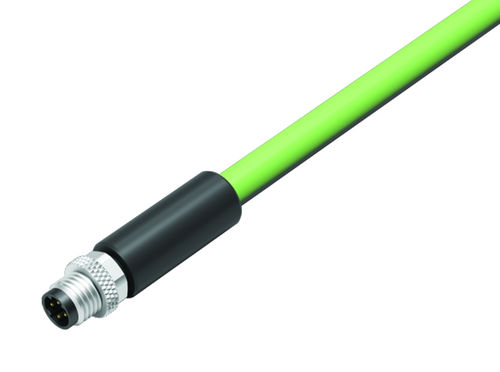

M8 Male cable connector, Contacts: 4, shielded, moulded on the cable, IP67, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 2 m
This male cable connector mit M8x1 Verriegelung and a pin count of 4 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/85 °C is this shielded M8-D coded male cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 63 V and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-114.
