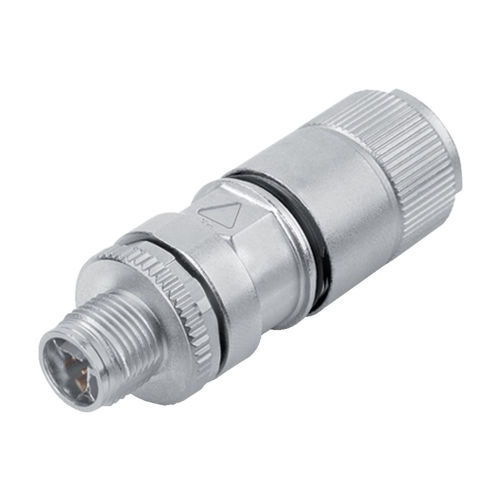

Electrical power supply connector 99 3787 810 08DINmalescrew
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Format
- DIN
- Connection type
- male, screw, locking
- Electrical characteristics
- current, AC, DC, voltage
- Product applications
- cable
- Protection class
- IP67
- Other characteristics
- immersion
- Primary current
0.5 A
- Voltage
50 V
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 85 °C
(185 °F)
Description
This male cable connector with screw locking and a pin count of 8 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this shieldable M12-X male cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 50 V (AC ) / 60 V (DC) and the rated current of 0,5 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-109.
Catalogs
CORE PROGRAM
236 Pages
DATA TRANSMISSION
61 Pages
