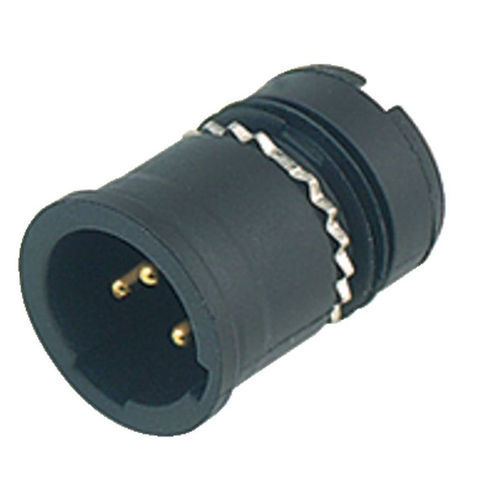

Electrical power supply connector 09 2431 09 03

malescrewlocking

M12 Male receptacle, Contacts: 2+PE, unshielded, solder, IP67, UL M12-US, series 815, Automation Technology - Voltage and Power Supply This male receptacle with screw locking and a pin count of 2+PE is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -25 °C/85 °C is this unshielded M12-US male receptacle designed for both severe cold and severe heat and has the UL approval. Due to the qualified rated voltage of 250 V and the rated current of 4,0 A it is perfectly tuned for its field of application. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
