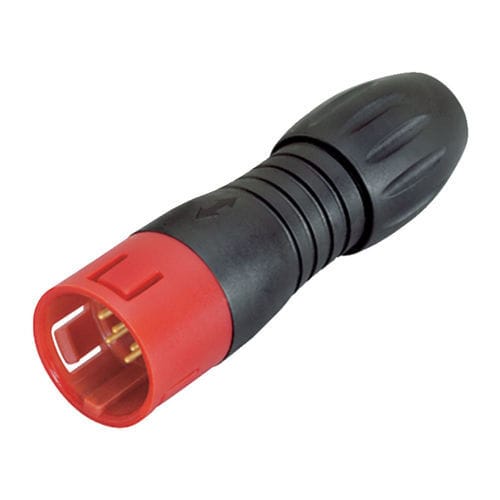

Electrical power supply connector 99 9105 50 03
malelockingweld

electrical power supply connector
electrical power supply connector
Add to favorites
Compare this product


Characteristics

Type
electrical power supply
Connection type
male, locking, weld
Electrical characteristics
current, voltage
Product applications
cable, control
Domain
construction
Protection class
IP67
Other characteristics
IEC, immersion, miniature
Primary current

7 A

Voltage

250 V

Operating temperature

Min.: -25 °C
(-13 °F)

Max.: 85 °C
(185 °F)

Description

Snap-In Male cable connector, Contacts: 3, 4.0-6.0 mm, unshielded, solder, IP67, UL, VDE Snap-In IP67, series 720, Miniature Connectors This male cable connector with snap-in locking system and a pin count of 3 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 2. In places where light, non-conductive soiling may occur, but temporary conductivity due to condensation must be expected in some cases. With temperatures ranges of -25 °C/85 °C is this unshielded Snap-In IP67 male cable connector designed for both severe cold and severe heat and has the VDE approval. Due to the qualified rated voltage of 250 V and the rated current of 7,0 A it is perfectly tuned for its field of application. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
