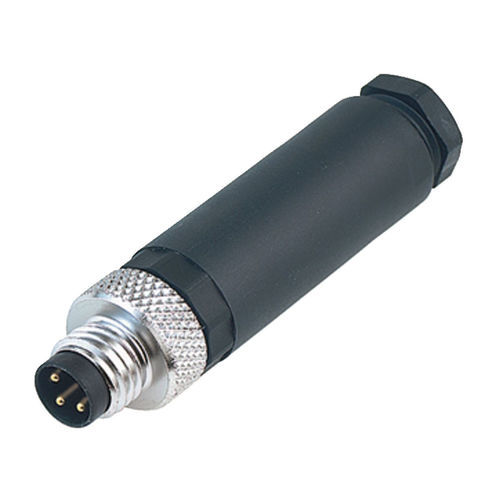

Electrical power supply connector 99 3379 100 03
DINscrewlocking

electrical power supply connector
electrical power supply connector
Add to favorites
Compare this product


Characteristics

Type
electrical power supply
Format
DIN
Connection type
male, screw, locking
Size
M8
Electrical characteristics
current, voltage, load
Product applications
cable, control, clamp
Domain
automation, construction
Protection class
IP67
Other characteristics
IEC, immersion
Primary current

4 A

Voltage

30 V

Operating temperature

Max.: 85 °C
(185 °F)

Min.: -40 °C
(-40 °F)

Description

M8 Male cable connector, Contacts: 3, 3.5-5.0 mm, unshielded, screw clamp, IP67, UL M8, series 768, Automation Technology - Sensors and Actuators This male cable connector with screw locking and a pin count of 3 is according to its protection class IP67 Dust-tight and has complete protection against contact and protection against temporary immersion. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation. With temperatures ranges of -40 °C/85 °C is this unshielded M8 male cable connector designed for both severe cold and severe heat. und has the UL approval. Due to the qualified rated voltage of 30 V and the rated current of 4,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-104. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
