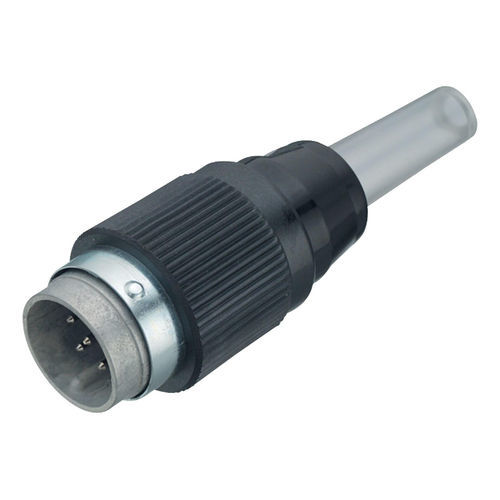

Electrical power supply connector 09 0055 00 03weldlockingbayonet
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Connection type
- male, bayonet, locking, weld
- Electrical characteristics
- power, current, voltage
- Product applications
- cable
- Protection class
- IP40
- Primary current
10 A
- Voltage
250 V
- Operating temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
Bayonet Male cable connector, Contacts: 3, 5.0-8.0 mm, shieldable, solder, IP40
Bayonet, series 690, Power Connectors
This male cable connector with bayonet locking system and a pin count of 3 is according to its protection class IP40 protected against solid foreign bodies and against access with a wire. No protection against water. It can be used in areas with a pollution degree of 1. In places where there is no or only slight, but non-conductive soiling. The pollution has no influence. With temperatures ranges of -40 °C/85 °C is this shieldable bayonet male cable connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 250 V and the rated current of 10,0 A it is perfectly tuned for its field of application.
