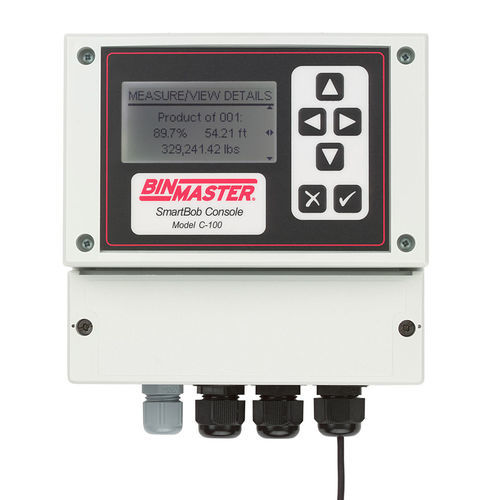

Weight and cable level sensor C-100

for solidsfor liquidsfor storage tanks

C-100 - Control console for 1 to 128 bins, wall mount console with LCD display, NEMA 4X or 24 VDC. Measurement formats can be displayed as headroom percentage, headroom height, headroom weight, product percentage, product height and product weight. Vessel configuration and user settings are stored in non-volatile memory and will be retained during a power failure. The C-100 has one 4-20 mA output and remote start contact to provide a traditional interface to a PLC/DCS system for 1 SmartBob sensor. The BinMaster C-100 control console provides convenient walk up or drive up access to level and volume data indoors or outdoors at the push of a button. The C-100 offers measurements displayed as feet or cubic feet, US gallons or bushels, and tons, metric tons, or kilograms. Measurements can be output as height of material or distance to product (headroom). Configuration uses intuitive push-button controls in English or Spanish. User settings are stored in a non-volatile memory to protect against data loss in the event of power failure. All models feature a 24 VDC power supply and a NEMA 4X rating for resistance to dust and rain. The C-100-SB model is used with SmartBob sensors, the C-100-MB is for use with SmartBob sensors requiring a Modbus output, and the C-100-R is compatible with NCR non-contact radar, GWR guided wave radar, and SmartSonic ultrasonic level sensors. Uses Convenient data access from a truck load out or walk up by users at ground level Monitoring vessel levels as material height or headroom in real time from a centralized location Safely and easily initiate and view measurements from multiple sensors in a network
