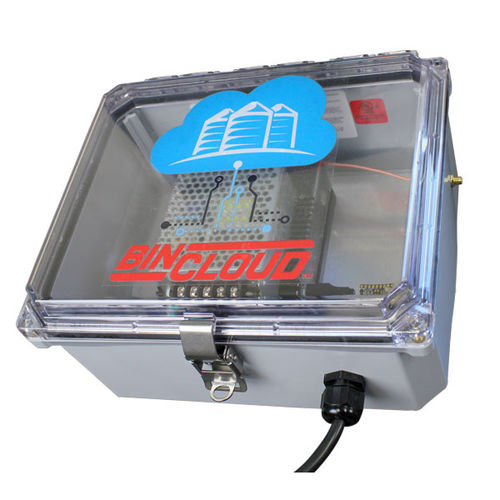

Data transmission system BC-GW-100

BC-GW-100 BinCloud Gateway collects sensor data and sends it to the BinCloud platform on the web. Base unit includes 2 - RS485 inputs. The BinCloud® Gateway flows data quickly and seamlessly in and out of a network. In an inventory management system, level sensors send measurements to the BinCloud gateway to push data quickly to BinCloud inventory software for access by the user via phone, tablet, PC or a control room. Uses Cloud inventory management in a wireless sensor network Makes local or remote inventory monitoring system easy Sends data from level sensors to a software or web application Works with BinMaster and competitors’ Modbus-capable devices With FeedView® or BinView® and FVL-200 / SPL-100 laser level sensors Along with LTR-100 for LoRa communication to any BinCloud software Features Compatible with a variety of network infrastructures Supports RTU, TCP, and RTU over TCP protocols Fast update times of two to five seconds Global cellular coverage using 4G LTE, CAT-M, and NB-IoT technologies Accepts 4-20 mA, digital, mV, RTD, and Potentiometer inputs Optional setting to auto-switch to cell data if Ethernet or WiFi network fails Cell modem replaceable upon release of next generation cellular Can connect to multiple Modbus networks simultaneously Work with BinMaster’s wireless technologies to connect remote sensors
