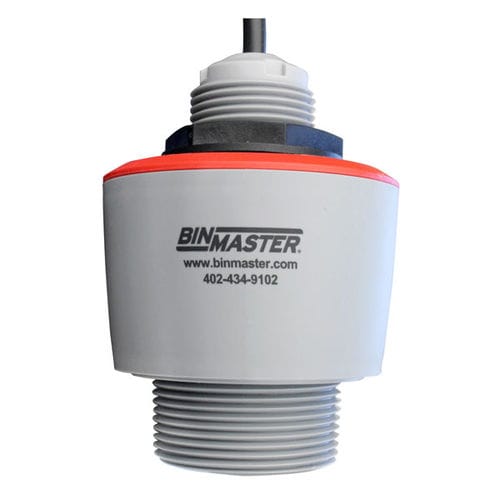

Radar level sensor CNCR-110

for liquids4-20 mA2-wire

The CNCR-110 is a compact 80 GHz radar for distances up to 26' (8m). It is installed using a polyurethane pigtail connection cable and has a top cable connection. These sensors are rated to IP66/IP68 (3 bar) with housings made from durable PVDF material that has excellent chemical, abrasion, flame resistance, and UV stability. The FKM seal provides heat and chemical resistance for long-lasting durability. Compact Non-Contact Radar: 80 GHz radar for tanks and silos up to 98’ Small size for smaller tanks. Easy to wire using a pigtail electrical connection. Bluetooth set up on your phone. Where to use CNCR radar level sensors? Small liquid tanks or solids silos. Install in existing vessel openings. Measures non-intrusively through IBCs or plastic vessels. Where does level measurement data go? Any BinCloud® inventory management software on your phone, tablet, or PC. Or send data to a local walk-up display or a PLC. The difference between the four level sensor models: CNCR-110: measures up to 26’, top pigtail connection CNCR-120: measures up to 49’, top pigtail connection CNCR-130: measures up to 49’, side pigtail connection CNCR-190: measures up to 98’, top pigtail connection Note: For solids, distances are 50% less. Check with the factory for the latest hazardous approvals. CNCR-100 series radars rock! Narrow 8° beam works reliably in challenging conditions Wall-mounted 3.5” or 8” brackets for simple installation No dead zone, measures right up to the face of the sensor Chemical resistant enclosure, IP Rated against dust and water ingress Compact design fits in tight spaces, installs through existing openings Increases safety, no climbing tanks,
