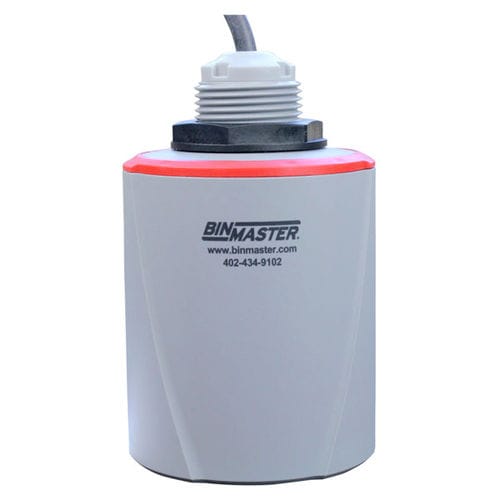

Radar level sensor CNCR-190

for liquidsModbus4-20 mA

The CNCR-190 is a compact 80 GHz radar for distances up to 98' (30m). It is installed using a polyurethane pigtail connection cable and has a top cable connection. These sensors are rated to IP66/IP68 (3 bar) with housings made from durable PVDF material that has excellent chemical, abrasion, flame resistance, and UV stability. The FKM seal provides heat and chemical resistance for long-lasting durability. Compact Non-Contact Radar: 80 GHz radar for tanks and silos up to 98’ Small size for smaller tanks. Easy to wire using a pigtail electrical connection. Bluetooth set up on your phone. Where to use CNCR radar level sensors? Small liquid tanks or solids silos. Install in existing vessel openings. Measures non-intrusively through IBCs or plastic vessels. Where does level measurement data go? Any BinCloud® inventory management software on your phone, tablet, or PC. Or send data to a local walk-up display or a PLC. The difference between the four level sensor models: CNCR-110: measures up to 26’, top pigtail connection CNCR-120: measures up to 49’, top pigtail connection CNCR-130: measures up to 49’, side pigtail connection CNCR-190: measures up to 98’, top pigtail connection Note: For solids, distances are 50% less. Check with the factory for the latest hazardous approvals. CNCR-100 series radars rock! Narrow 8° beam works reliably in challenging conditions Wall-mounted 3.5” or 8” brackets for simple installation No dead zone, measures right up to the face of the sensor
