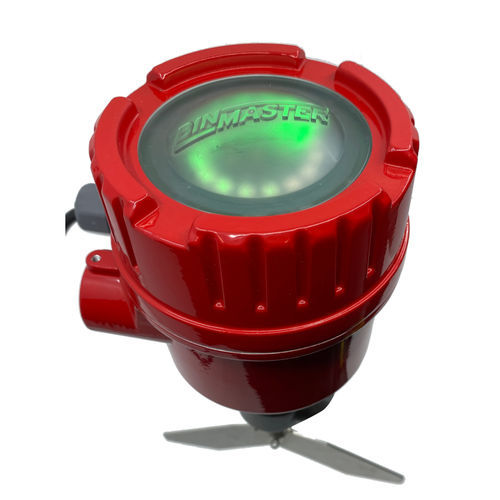

Rotary paddle level switch BMRX-300

electromechanicalfor solidsfor tank

BinMaster’s new BMRX-300 rotary level switch is the first to feature a large LED built-in indicator light. The highly visible light is green while the paddle is turning. When the paddle is stopped by material, a relay closes to indicate a change in status and the light changes to red. The light is housed in the lid of the rotary. There’s no extra wiring to an external light. When the BMRX-300 is mounted on the side of the vessel, the bright green or red light is visible from 100 feet away. Couplers and paddles sold separately. Rotary Level Indicator with Built-in LED Indicator Light The BMRX-300 rotary level switch is equipped with a prominent LED indicator light built into its design. The vibrant LED transitions between green and red, signaling the paddle's movement status and indicating when the bin is full or empty. Highly visible LED indicator The LED light is integrated into the lid of the rotary, eliminating the need for additional wiring to an external light source. When the BMRX-300 is affixed to the side of the vessel, the bright green or red light remains visible from a distance of up to 100 feet. Green = Turning, Red = Stopped During paddle rotation, the LED light shines green. When the paddle is stopped by material accumulation, a relay activates to signify a status change, causing the light to switch to red. De-engergized Motor State When the paddle is covered and stops turning, the motor de-energizes. This protects the motor from unnecessary wear-and-tear to ensure a long service life. Fail-safe operation The BMRX-300 distinguishes itself as an exceptional rotary for process control with its fail-safe operation,
