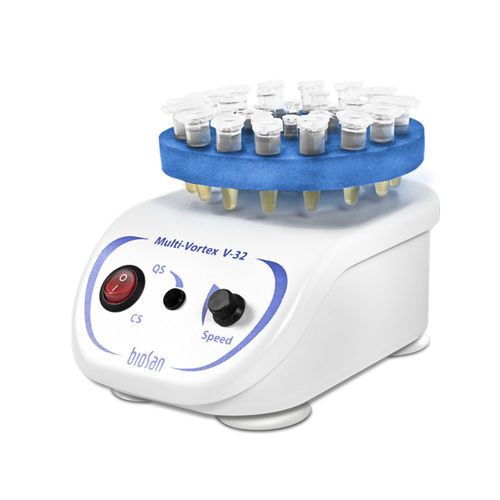

Multi-Vortex V-32 is intended for intensive stirring of bacterial and yeast cell, washing from the culture medium and extraction of metabolites and enzymes from cells and cell cultures.
It is different from V-1 by the possibility of mixing up to 32 tubes simultaneously.
Vortex is applicable for:
• Performing various DNA operations — deproteinisation of DNA/ protein complexes;
• Purification of low-molecular DNA/RNA fragments in PCR-diagnostic.
Multi-Vortex has two operation modes:
Continuous operation;
Impulse operation.
V-32 is supplied with a 32-socket universal platform for Eppendorf type tubes up to 2 ml (2-1.5/0.5/0.2 ml — 16/8/8 sockets) PV-32 and PL-1 platform for mixing single tube up to 50 ml.
An optional 6-socket platform PV-6/10 for 10 ml tubes (max. tube diameter 15 mm) or PV-48 for 48 - 0.2 ml microtubes can be supplied on request.
Eccentric mixing principle : +
Speed control range : 500-3000 RPM
Acceleration time : 3 s
Maximum continuous operation time : 24 h
Continuous / impulse operation : +
Maximum load : 70 g
Orbit : 2 mm
Overall dimensions (W×D×H) : 120x180x100 mm
Weight : 1.5 kg
Input current/power consumption : 12 V, 320 mA / 3.8 W
External power supply : Input AC 100–240 V; 50/60 Hz; Output DC 12 V
