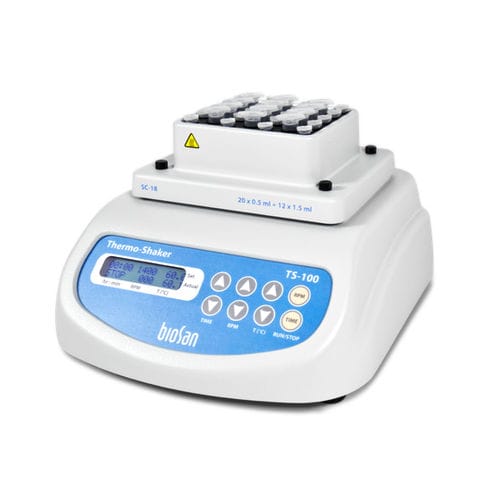

Orbital thermoshaker TS-100

digitalplateheating

Thermo–Shaker TS-100 provides intensive mixing and temperature control of samples in microtest tubes or PCR plate. Functions of heating (up to +100°C) and mixing can be performed both simultaneously and independently, i.e. the unit implements three devices in one: 1. Shaker; 2. Dry–block Thermostat; 3. Thermo–Shaker. TS-100 is used for DNA analysis sample preparation, for extraction of proteins, polysaccharides, lipids and other cellular components. Features of TS-100 meet the increased requirements of the user, including: • Quickly reaches the set mixing speed and maintains same amplitude of rotation around the block; • Stable maintenance of the temperature of a wide range over the entire surface of the block; • LCD display shows the set and actual temperature, speed and time; • Quiet engine operation, compact size, long service life. Heating source is a printed heating board (12 V). Mixing is provided by movement of orbital type. The instrument is applicable in: • Genetic analysis — in extraction of DNA, RNA and further sample preparation; • Biochemical study of enzymatic reactions and processes; • Extraction of metabolites from cellular material. Temperature Calibration Function With the help of the temperature calibration function the user can calibrate the unit approx. ±6% of the selected temperature to compensate differences in the thermal behaviour of tubes from different manufacturers.
