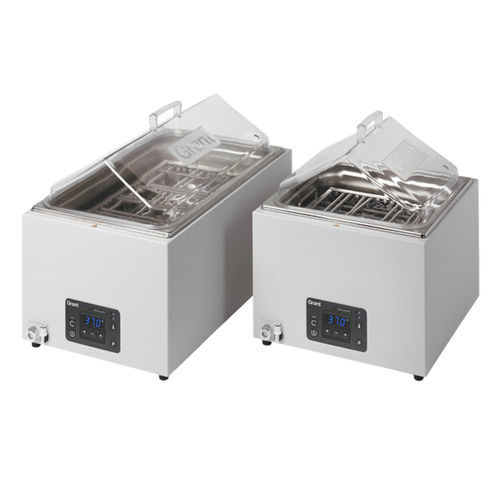

Linear shaking water bath LSB Aqua Pro range

laboratorybenchtopwith digital display

The Grant LSB linear shaking bath combines Grant’s high precision temperature control with a robust, high quality, patented linear shaking mechanism that works smoothly and consistently even in demanding applications. High quality, robust design with unique magnetically coupled shaking mechanism for maximum reliability, consistency and quiet operation. Linear only shaking excellent usuablilty for all routine applications. Extensive range of accessories to provide the right solution for your application. Varied vessels types can be securely held using high quality, springs, clamps or racks Minimum working volume : 5 of 12 litres (LSB12) 8 of 18 litres (LSB18) Minimum working depth : 60 mm Temperature range : ambient +5 to 99°C Uniformity (DIN 12876-3) @ 70°C : ±0.1°C Stability (DIN 12876-3) @ 70°C : ±0.1°C Temperature setting / display : digital / 3-digit LED Linear — Shaking speed control range : 20 to 200* rpm *depending on load Linear — Stroke length : 20 mm Timer : 1 to 999 mins Drain tap : yes Safety : over-temperature protection / low liquid cut-out Shaking tray area : 240 x 235 mm (LSB12) 420 x 235 mm (LSB18) Overall dimensions (W×D×H) : 360 x 385 x 425 mm (LSB12) 335 x 565 x 425 mm (LSB18) Overall consumption : 0.8 kW (LSB12) 1.4 kW (LSB18) Nominal operating voltage : 120 or 230 V
