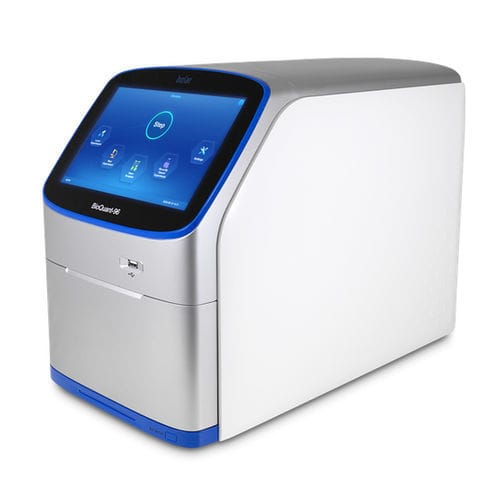

Real-time thermal cycler BioQuant-96

BioQuant-96 is the newest product of Biosan Molecular diagnostic product family. It has adopted innovative thermoelectric refrigeration technology, brand-new light source and light path design. Detection from the top allows using different consumables - 0,2 tubes, 8-tube strips and semi-skirted and non-skirted 96-well PCR plates. The unique constant current power and 6-zone independent temperature control method ensure more rapid, correct and stable fluorescence quantitative analysis, while maintaining its excellent performance in lowest possible energy consumption. Device is available in 5-channel configuration. Meanwhile, it has been added with functions including independent temperature control, low temperature storage of sample at 4℃ and FAST mode for more faster cycling (confirm reagent compatibility with fast mode). BioQuant-96 is comprehensively realizing automatic gain setting and improving user experience. Sample capacity : 0.2ml single tube (transparent cap), 96×0.2(0.1)ml Plate (transparent cap), 8-strip tubes (transparent cap) Dynamic range : 1~10^10 copies Excitation wavelength : 300-800 nm Emission wavelength : 500-800 nm Channels : 5 Temperature setting range : 4 ~99.9°C (increment: 0.1°C) Heating/coolling rate : Max 6.0 °C/s / 5.5 °C/s Temperature accuracy : ≤±0.1°C Temperature fluctuation : ≤±0.1°C Temperature uniformity : ≤±0.3°C Temperature control mode : Block/6-zone gradient Sample volume : 1 ~ 100 μl Gradient temperature range : 1 ~ 30°C Hot-lid temperature range : 30 ~110°C (adjustable default: 105°C, Automatic Hot-lid) Repeatability : 5% Scan mode : Full plate simultaneously Program : Max. 20 segments for each program, max. 99 cycles
