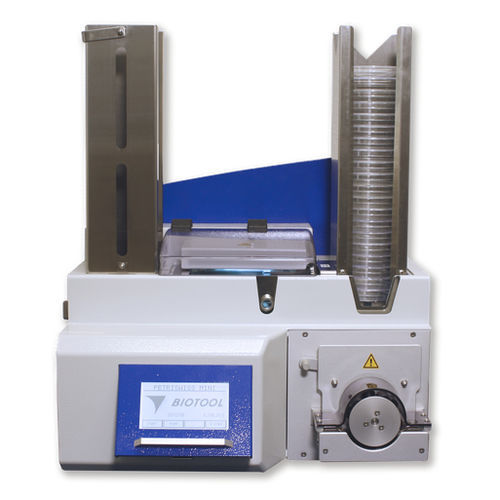

Petri dish filling system PetriSwiss PS20

fully-automaticfor platesfor the pharmaceutical industry

You need small lots? • Ideal for filling 90mm and 60mm Petri Dishes • UV-lamp integrated • Low pulsation by 10-roller double pump head • Large diameter double tubing’s • Adjustable Speed • Stacking of 1 - 20 plates • Removable rack with handle for safe Dish transport and exchange • Single dosing, optional foot switch • Easy-to-clean and handle • Small footprint takes up less bench space The unique PetriSwiss PS20 Mini is a fully automatic and very precise Petri dish filling system, "made in Switzerland". Offering facility for applications including dish feeding, singel dosing, stacking and dish discharging the PetriSwiss Mini delivers precise automated operation to enhance the productivity of your laboratory. The system can load twenty 90mm Dishes with agar and restack them back into the Petrirack stacker in only 2 minutes. Equipped with intuitive intelligent software, accessible via a convenient touckscreen, any user can be efficiently using the PetriSwiss Mini after minimal instruction. Ideal for: • Microbiology laboratories • Research and development • Pharmaceutical industry • Hospitals • Food industry • Universities • Small&special batches • Rapid filling of 20 plates in ca. 1.5 - 2 min (~600 plates/h) • Easy to use • Easy to calibrate • Easy to clean • Graphic display • Dosing quantities, speed, pause and AntiDrop function • 1-99 ml dosing range • Optional push-out table • Optional second pump connection for blood agar • Rapid tubing exchange, quick load system • Versatile and convertable
