Flexible videoscope P1
for remote visual inspectionfor turbine engine inspectionfor heat exchangers

Flexible videoscope - P1 - Bipol - for remote visual inspection / for turbine engine inspection / for heat exchangers
Flexible videoscope - P1 - Bipol - for remote visual inspection / for turbine engine inspection / for heat exchangers
Flexible videoscope - P1 - Bipol - for remote visual inspection / for turbine engine inspection / for heat exchangers - image - 2
Flexible videoscope - P1 - Bipol - for remote visual inspection / for turbine engine inspection / for heat exchangers - image - 3
Flexible videoscope - P1 - Bipol - for remote visual inspection / for turbine engine inspection / for heat exchangers - image - 4
Add to favorites
Compare this product


Characteristics

Construction
flexible
Applications
for remote visual inspection, for turbine engine inspection, for heat exchangers, for under-vehicle inspection
Other characteristics
portable, articulated, with memory card, waterproof, LCD display, 4-way, 360° swivel, interchangeable probe, long-distance, infrared
Diameter

Max.: 28 mm
(1.1 in)

Min.: 2.8 mm
(0.11 in)

Cable length

Max.: 30 m
(98'05" )

Min.: 1 m
(3'03" )

Description

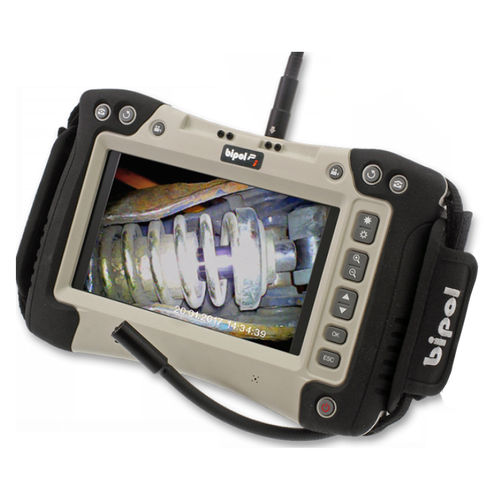

The BIPOL Videoscope P1 is a high resolution lightweight portable video unit built to meet the needs of remote visual inspection of various applications. Its robust, water (IP67), dust and drop-proof to 2 meters construction allows operator to work in hard-to-reach and confined areas in harsh environments. The intuitive control panel has been designed for both lefthanded and righthanded users. The P1 videoscope accepts a large variety of wired and wireless video probes to answer all possible inspection cases up to 10 meter working length. Refer to our documentation for the full list of available probes. A micro-SD card 32GB allows hours of images storage and video recording. Live images are displayed on a bright new generation 7” LCD colour screen which offers a resolution of 800×480 pixels. The P1 Videoscope includes a 4x digital zoom and 360° image rotation functions to allow multiple angle observations of the inspected area. A virtual keyboard offers text annotation on pictures and videos to easily classify files and generate inspection reports. You can charge our P1 anywhere: at home, on the workshop, outside, in your car. The extended battery offers up to 5 hours of continuous runtime.

VIDEO
