Digital indicator for the display of wind speed and wind direction
Area: Displays & Wind Alarms
Application: General Meteorology
Wind Display LED Combined

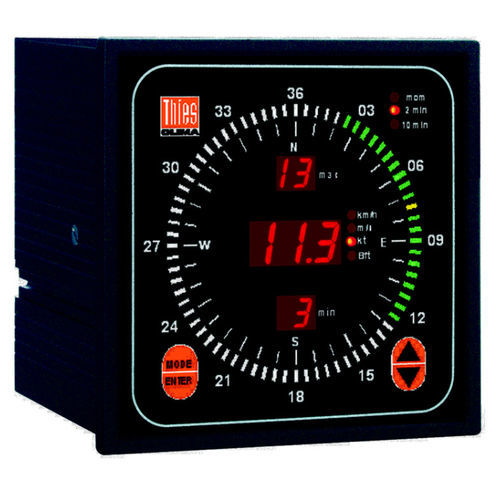

Digital indicator for the display of wind speed and wind direction.
Indicates the wind direction in a circle of 72 LED luminous bars, and the speed by 7-segment-LEDs. In addition, the minimum and maximum wind speed values can be indicated by two other digit displays.
Display options for Wind Speed:
• Instantaneous value or
• 2 min. mean value and maximum value or
• 10 min. mean value and maximum value
Display options for Wind Direction:
• Instantaneous value or
• 2 min. mean value and variation or
• 10 min. mean value and variation
The calculation of the mean values and maximum values is carried out according to International Civil Aviation Organisation (ICAO) protocols. A built-in RS-422-interface facilitates the connection of other displays.
Display Wind direction, Wind speed, min and max values
Display Range 0-360º
0-99.9 0-999 (m/s, kt, km/h, or Bft)
Resolution - 5º
Operating Voltage 115VAC & 12-35 VDC or 230 V C & 12-35VDC
Weight 1.5kg
