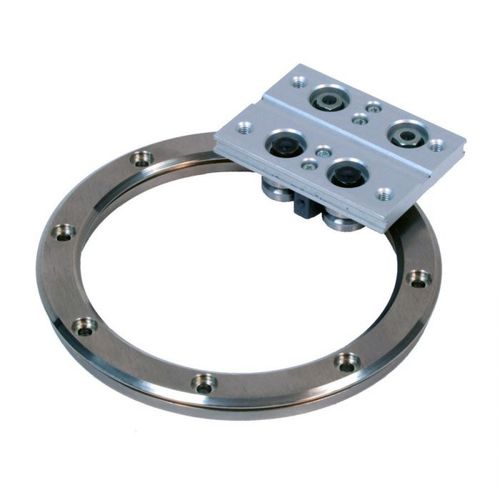

Roller linear slide PRT2

precisionstainless steel

Introducing a substantial range of precision ring slides, ring segments, bearings and ancillary components to suit virtually every rotary and track system application. Not all motion needs are linear, which is where PRT2 (Precision Ring and Track), DTS (Driven Track System), and HDRT (Heavy Duty Ring and Track) product lines come in. The PRT2 line offers rotary systems, while the DTS line offers actuated rotary systems. PRT2 was designed to solve rotary and continuous motion problems - Ring Slides for circular movement and Track Systems for combined linear and rotary motion applications. Overview -Low friction motion / zero play -Extensive range of Ring diameters up to 1501 mm as standard -Limitless variety of circuits available -Various carriage plate options -Stainless steel options -Simple and effective means of lubrication -Fully adjustable -Tolerant of debris -Tolerant of misalignment and easy to install -Large hollow center to accommodate other components (ring slides) -Precision flat surface for mounting ancillary components (ring discs) -Gearcut options for ease of driving -High load support option at work station -Carriage Brake available -Floating Bearings available - axial movement of vee position Assembled Rotary Systems Ring systems are precision ground with hardened V faces for long life. Gear teeth may also be cut along the inner or outer diameter to provide means of actuation. Two types of rotary systems are possible - Rings may be mounted and held stationary with a carriage that moves along the ring, or as a moving object supported by fixed bearing assemblies.
