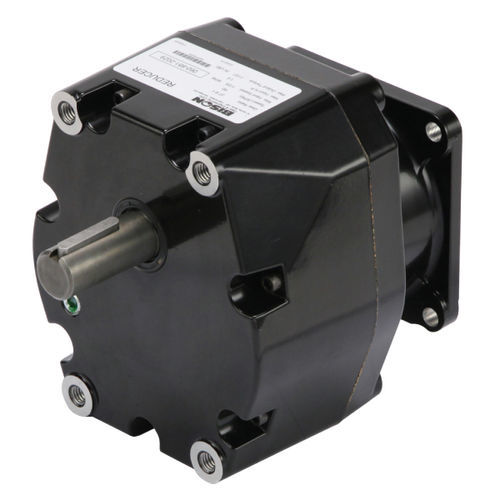

Parallel-shaft gear reducer 881 seriesspurhelical gearsolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- helical gear, spur
- Shaft orientation
- parallel-shaft
- Shaft configuration
- solid-shaft
- Torque
- 100 - 200 Nm, 20 - 50 Nm, 50 - 100 Nm
- Number of stages
- three-stage, two-stage
- Performance
- high-torque
- Applications
- industrial
- Other characteristics
- rugged
- Rotational speed
Max.: 253 rpm
(1,589.65 rad.min-1)Min.: 12 rpm
(75.4 rad.min-1)- Gear ratio
Max.: 143 unit
Min.: 7 unit
Description
High Torque Gear Reducers, 190 - 1195 in-lbs Torque
Specifications
Gearing: Hardened Steel Helical and Spur, AGMA Class 9
Housing: Precision Machined Die Cast Aluminum
Lubrication: LIfetime Oil Bath, Sealed and Gasketed
Bearings: Ball and Needle
Shafts: Hardened Steel
Mounting: Face or Base, Any Angle
Durable & Reliable
Rugged design withstands the harshest, most demanding operating environments.
High Torque Output
Optimized gear train provides high levels of torque for the most demanding applications.
Markets & Applications
Agricultural Equipment
Food & Beverage Service
Packaging Equipment
Energy
