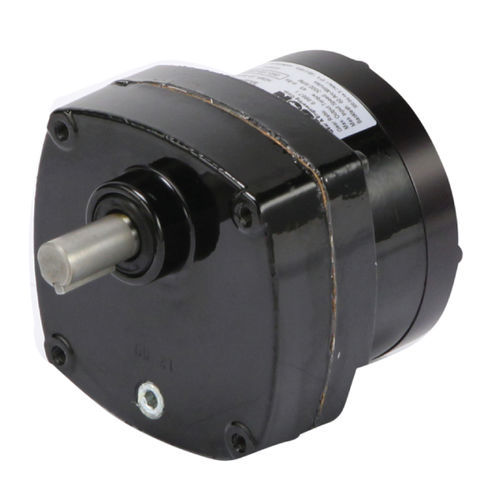

Helical gear gear reducer Multitech 185spurparallel-shafttwo-stage
Add to favorites
Compare this product
Characteristics
- Type
- helical gear, spur
- Shaft orientation
- parallel-shaft
- Number of stages
- two-stage
- Performance
- low-backlash
- Applications
- for conveyor, industrial, for pump
- Gear ratio
12.9 unit
Description
Add your own stepper or servomotor to our NEMA gearboxes. Highly efficient - helical-spur geartrains transmit 96% of the available power per stage, leading the industry. Low backlash ratings - less than 60 arc-minutes, create the ideal gear reducer for applications such as process conveyors, pumps, and dispensers. Shock load capability 200% - is standard in the Multi-Tech product offering, as it is in all of Bison’s products. Gloss black powder coat finish - provides the durability needed for demanding environments. Grease lubricated for all position mounting.
Stock:DNS
OHL:200
Input Shaft O.D.:0.25
Output Shaft O.D.:0.5
Max Input Speed:3600
Operating Temperature:0??-40?? C
Rated Duty:Continuous
NEMA Input:23
Axial Load (lb):25
Output Torque (lbs):20
Backlash Arc-min:60
