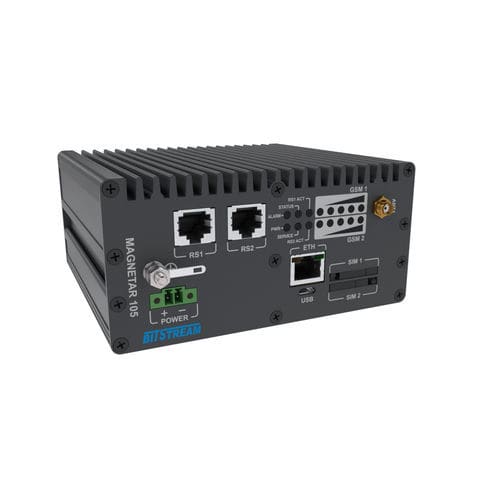

Wireless communication router Magnetar 105cellulardataLAN
Add to favorites
Compare this product
Characteristics
- Type
- cellular, data, wireless
- Network
- LAN, Ethernet, 2G, ProfiNet, network, 4G, WAN, 5G, USB, GSM, 3G, LTE, RJ45, LTE Cat.4, RS232, layer 2, telecommunications, 4G LTE, RS485, TCP/IP, IP, gigabit Ethernet
- Mounting
- DIN rail, rack
- Number of ports
- 1 port
- Other characteristics
- firewall, VPN, dual SIM, with digital I/O, rugged
- Applications
- industrial, for IoT applications, for remote access, for electrical distribution network
Description
Router enabling access and sharing of the 2G / 3G / 4G LTE cellular network. The router provides access to devices connected locally to the LAN interfaces and the RS232 / 485 and RS-232 port.
Properties and Benefits
-1(2)x WAN modem 2/3G/(4G LTE)
-1x LAN Ethernet 10/100Mbps
-1x RS232/485 virtual-com
-1x RS232 virtual-com or 2x in version with RJ45 connectors
-Modes for RS interfaces: TCP Server, UDP Server
-2x digital inputs, 1x 230V relay output, 1x low voltage relay output
-The functionality of IO ports implemented in accordance with the specific requirements of the customer.
-1x USB OTG
-Static Routing, NAT, Masquerade
-Security mechanisms: Firewall, IPsec, Open VPN, GRE
-Management via HTTP, SNMPv2c / v3, HTTPS, SSH, CLI
-Working temperature from -40 to + 75 ° C
-Rugged metal housing IP-30 DIN
-DC power supply
Catalogs
MAGNETAR 105
8 Pages
