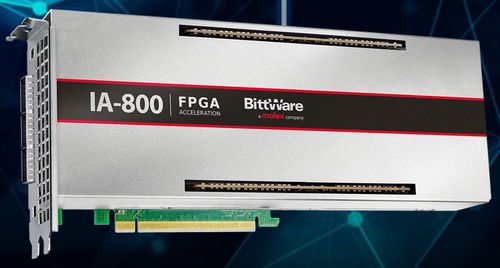

Mini PCIe Fpga card IA-840F

with I/O processor

Board Specifications FPGA Intel Agilex FPGA AGF027 in an R2581A package Core speed grade -2: I/O speed grade -2 Contact BittWare for other FPGA options On-Board flash 2Gbit Flash memory for booting FPGA External memory 2x 288-pin DIMM slots, each supporting up to 32GB DDR4 SDRAM modules (up to 64GB total) Designed-in support for other DIMM modules such as QDR SRAM. Contact BittWare for details. 2x banks on-board DDR4, up to 32GB each Host interface x16 Gen4 interface direct to FPGA, connected to PCIe hard IP QSFP-DD cages 3 QSFP-DD cages on front panel connected directly to FPGA via 24 transceivers User programmable low jitter clocking supporting 10/25/40/100GbE Each QSFP-DD can be independently clocked Jitter cleaner for network recovered clocking Multi-rate hard MAC+FEC for 10/25/100GbE MCIO 2x edge connectors supporting 4x Gen4 x4 PCIe root complexes, 2x Gen4 x8 endpoints, or 1x Gen4 x16 root complex or endpoint External clocking 1 PPS and 10MHz ref clk front panel inputs USB micro USB access to BMC, USB-JTAG, USB-UART Board Management Controller Voltage, current, temperature monitoring Power sequencing and reset Field upgrades FPGA configuration and control Clock configuration Low bandwidth BMC-FPGA comms with SPI link USB 2.0 PLDM support Voltage overrides Cooling Standard: double-width passive heatsink Optional: triple-width active heatsink (with fan) Optional: double-width liquid cooling Electrical On-board power derived from 12V PCIe slot & two AUX connectors Power dissipation is application dependent
