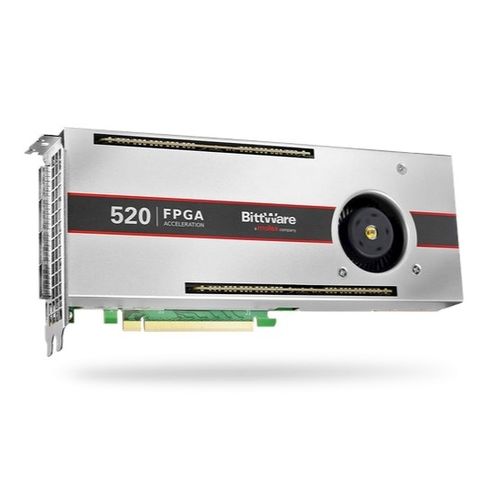

Mini PCIe Fpga card 520N-MX

with I/O processor

Stratix 10 FPGA Board with 16GB HBM2 Powerful solution for accelerating memory-bound applications Features Intel Stratix 10 MX2100 16GB HBM2 up to 512 GB/s BittWare-optimized OpenCL BSP Overview Designed for compute acceleration, the 520N-MX is a PCIe board featuring Intel’s Stratix 10 MX2100 FPGA with integrated HBM2 memory. The size and speed of HBM2 (16GB at up to 512GB/s) enables acceleration of memory-bound applications. The board’s 100G QSFP28s are ideal for clustering, and OCuLink connectors allow expansion. Specifications >> Board Specifications FPGA Intel Stratix 10 MX MX2100 in an F2597 package 16GBytes on-chip High Bandwidth Memory (HBM2) DRAM, 410 GB/s (speed grade 2) Core speed grade -2: I/O speed grade -2 Contact BittWare for other Stratix 10 MX options On-board Flash 2Gbit Flash memory for booting FPGA External memory 2x 288-pin DIMM slots each fitted with 16GB modules by default, i.e., 32GB total on board (options up to 256GB total) Contact BittWare for QDR-II+ & Intel Optane (3D-Xpoint) DIMM options Host interface x16 Gen3 interface direct to FPGA, connected to PCIe hard IP QSFP cages 4 QSFP28 cages on front panel connected directly to FPGA via 16 transceivers User programmable low jitter clocking supporting 10/25/40/100GbE Each QSFP28 can be independently clocked Jitter cleaner for network recovered clocking 2 QSFP28s have available 100GbE MAC hard IP OCuLink 2x edge connectors (A, B) @ 12.5G per lane (default); each supports PCIe Gen 3 x8 hard IP, GPIO, and PCIe master and optional input clocking
