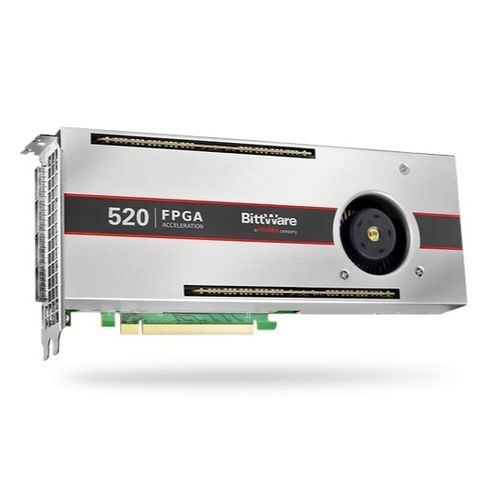

Mini PCIe Fpga card 520NX

with I/O processor

Stratix 10 AI-optimized FPGA with HBM2 AI-Optimized for High-Bandwidth, Low-Latency AI Acceleration Features Intel Stratix 10 NX2100 8GB of 3D stacked HBM2 AI Tensor Blocks Overview Designed to tackle the most demanding artificial intelligence workloads, the 520NX is a PCIe card featuring Intel’s Stratix 10 NX2100 FPGA. This revolutionary accelerator delivers a unique combination of capabilities needed to implement low latency and larger AI models: High-performance AI Tensor Blocks: 143 INT8 TOPS Deep Near-Compute Memory: up to 8GB of HBM2 High-Bandwidth Networking: up to 600Gbps board-to-board bandwidth Board Specifications FPGA Intel Stratix 10 NX NX2100 in an F2597 package 8GBytes on-chip High Bandwidth Memory (HBM2) DRAM, 410 GB/s (speed grade 2) Core speed grade -2: I/O speed grade -2 Contact BittWare for other Stratix 10 NX options On-board Flash 2Gbit Flash memory for booting FPGA External memory 2x 288-pin DIMM slots each fitted with 16GB modules by default, i.e., 32GB total on board (options up to 256GB total) Contact BittWare for QDR-II+ & Intel Optane (3D-Xpoint) DIMM options Host interface x16 Gen3 interface direct to FPGA, connected to PCIe hard IP QSFP cages 4 QSFP28 cages on front panel connected directly to FPGA via 16 transceivers User programmable low jitter clocking supporting 10/25/40/100GbE Each QSFP28 can be independently clocked Jitter cleaner for network recovered clocking 2 QSFP28s have available 100GbE MAC hard IP OCuLink
