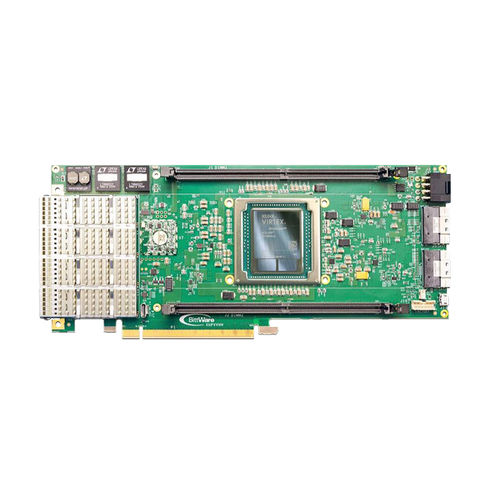

Mini PCIe Fpga card XUP-VVH

with I/O processor

Xilinx UltraScale+ 3/4-Length PCIe Board VU37P with Integrated HBM2, Quad QSFP, and 256 GBytes DDR4 on BittWare Viper Platform Features 4x 100GbE via 4 QSFP28 Up to 256 GBytes DDR4 VU37P FPGA: 2.8 million LCs and 8GBytes HBM2 FPGA by Xilinx Overview BittWare’s XUP-VVH is an UltraScale+ VU37P FPGA-based PCIe card ideal for high-density datacenter applications that demand high memory bandwidth. The UltraScale+ FPGA helps these demanding applications avoid I/O bottlenecks with integrated High Bandwidth Memory (HBM2) tiles on the FPGA that support up to 8 GBytes of memory at 460 GBytes/sec. Along with the integrated memory, the UltraScale+ VU37P offers up to 2.8 million logic elements, which gives designers incredible performance potential — yet with a power density that makes thermal management difficult. The XUP-VVH meets this challenge with BittWare’s Viper platform, supporting large FPGA loads, up to 256 GBytes DDR4, and 4x 100 Gbps Ethernet. BittWare’s Viper platform uses advanced computer flow simulation to drive the physical board design in a thermals first approach, including the use of heat pipes, airflow channels, and arranging components to maximize the limited available airflow in a server. Viper boards are passive by default, with active cooling as an option. Board Specifications FPGA Virtex UltraScale+ VU37P 8 GBytes of HBM2 high-bandwidth DRAM Core speed grade – 2 Contact BittWare for other FPGA options On-board Flash Flash memory for booting FPGA External memory 2 DIMM sites, each supporting: Up to 128 GBytes DDR4 x72 with ECC
