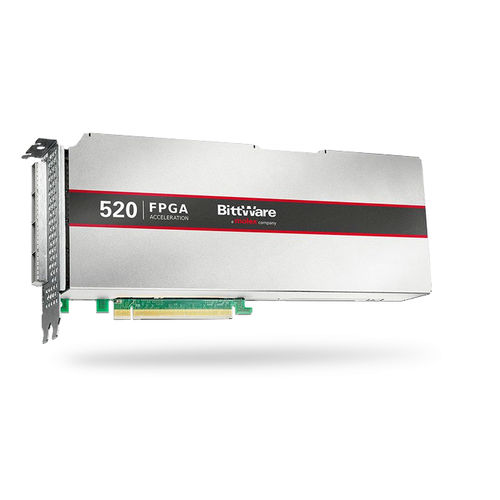

Mini PCIe Fpga card 520N

with I/O processor

PCIe FPGA Board Intel Stratix 10 FPGA with 4x QSFPs and 32 GBytes DDR4 Features Intel Stratix 10 GX 2800 4x QSFP28s for 400Gbps BittWare-optimized OpenCL BSP Overview Introducing ground-breaking single precision floating point performance of up to 10 TFLOPS, the 520N is a PCIe board featuring an Intel Stratix 10 FPGA, along with four banks of DDR4 external memory. Specifications >> FPGA Intel Stratix 10 GX GX2800 in an F1760 package L-tile with up to 26Gbps SerDes I/O H-tile with up to 28Gbps SerDes I/O Core speed grade -2: I/O speed grade -2 Contact BittWare for other Stratix 10 GX options On-board Flash 2Gbit Flash memory for booting FPGA External memory Four banks of DDR4 SDRAM x 72 bits 8GB per bank (32GB total / 64GB version also available) Transfer Rate: 2400 MT/s Host interface x16 Gen3 interface direct to FPGA, connected to PCIe hard IP QSFP cages 4 QSFP28 cages on front panel connected directly to FPGA via 16 transceivers L-Tile: up to 2 100Gbps network ports H-Tile: up to 4 100Gbps network ports User programmable low jitter clocking supporting 10/25/40/100GbE Each QSFP28 can be independently clocked Jitter cleaner for network recovered clocking 2 QSFP28s have available 100GbE MAC hard IP System manager On-board Intel USB Blaster Power and temperature monitoring Fault condition reporting to FPGA Cooling Standard: double-width active heatsink (with fan) Optional: double-width passive heatsink
