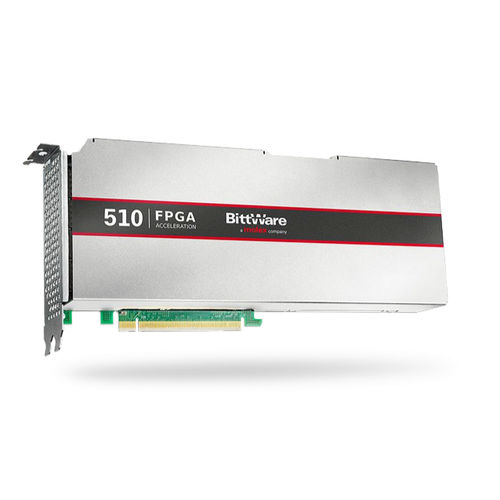

Mini PCIe Fpga card 510T

with I/O processor

Arria 10 GPU Sized PCIe Board Dual 1150GX FPGAs with 32 GBytes DDR4 Features Dual Intel Arria 10 GX 1150 Up to 32 GBytes DDR4 OpenCL BSP Overview Introducing ground-breaking single precision floating point performance of up to 1.5 TFLOPS per device. The BittWare 510T Datacenter Co-Processor is a standard-height, dual-slot PCIe board designed to deliver fast and efficient performance per watt. The OpenCL-programmable 510T features two Intel Arria 10 FPGAs, along with four banks of DDR4 external memory per FPGA. Board Specifications FPGA Two Intel Arria 10 GX 1150GX in F45 package Core speed grade -2: I/O speed grade -3 Contact BittWare for other Arria 10 GX options On-board Flash Flash memory for booting FPGA On-board memory Eight banks of DDR4 SDRAM x 72 bits Four 4GB banks per FPGA (32GB total) Transfer rate: 2133 MT/s Host interface x16 Gen3 interface System manager On-board Intel USB Blaster II Power and temperature monitoring Fault condition reporting to FPGA Cooling Standard: double-width active heatsink (embedded fan) Optional: double-width passive heatsink Electrical On-board power derived from 12V PCIe slot & one AUX connectors (8-pin) Power dissipation is application dependent Typical max power consumption 225W Environmental Operating temperature: 5°C to 35°C Quality Manufactured to ISO9001:2008 IPC-A-610-Class RoHS compliant Form factor Standard-height PCIe dual-slot board 4.37 x 10.5 inches (106.65 x 266.7 mm) Development Tools FPGA development
