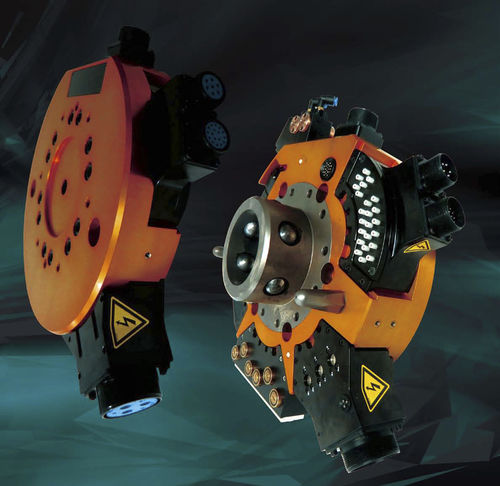

CNC tool changer GIGA™ series

automaticwith rotary magazine

GIGA is a device for automatic tool changing, designed for robots handling heavy- payloads, with weight capacities of 230kg, 400kg, 500kg, and 700kg. GIGA is used for body in white handling and jig base changing in the automotive industry. It is also used in other industries for heavy load palletizing, and loading and unloading of CNC machines. In addition to handling applications, GIGA can be used in spot-welding gun changing applications. GIGA can also use our QUICK-CHANGE ZEUS Series modules. Lock without touching The Master plate can lock onto the Tool plate with a gap between them Enhanced mechanical fail-safe function! Our proven mechanical fail-safe mechanism has been further enhanced with the addition of a spring back-up for greater reliability, so the Master and Tool Plates will not separate, even if pneumatic pressure fails. Conforms to ISO standards for robot flanges! The GIGA bolt pattern is compatible with heavy payload robot flanges. Bolt pattern: PCD 200, M12x6 pes Safety feature:fool-proof mechanism Optionally equipped drop-prevention valve only allows the Master Plate and Tool Plate to unlock at designated spots on tool stands.
