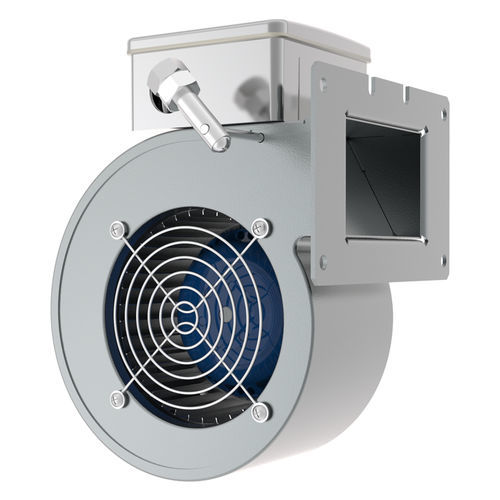

Air blower SL-F120A-2E-A01-01impellersingle-stagefor vacuum
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- impeller
- Number of stages
- single-stage
- Applications
- for vacuum
- Other characteristics
- dry
- Flow
Max.: 2,950 m³/h
(104,178.27 ft³/h)Min.: 2,490 m³/h
(87,933.52 ft³/h)- Operating pressure
476 Pa
(0.069 psi)- Nominal power
Max.: 78 W
(0.106 hp)Min.: 61 W
(0.083 hp)- Sound level
Max.: 63 dB
Min.: 60 dB
Description
Impeller material: - galvanized steel
Casing material: - sheet steel
Direction of rotation: - clockwise, seen on rotor
Type of protection: - IP44
Insulation class: - B
Mode of operation: - continuous operation (S1)
Bearing: - ball bearings
Motor protection: - self-resetting TOP wired internally
