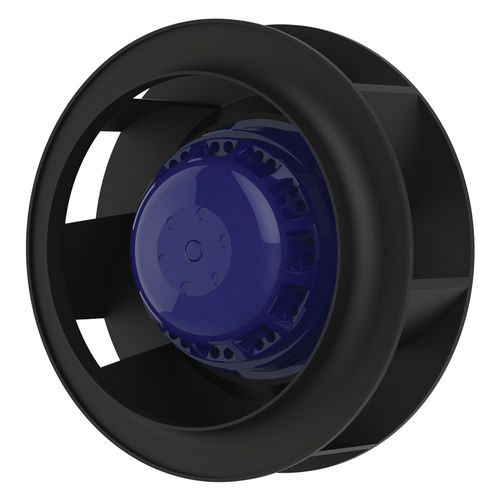

Backward curved fan BL-B175A-2E-A01-01IP44centrifugal230VAC
Add to favorites
Compare this product
Characteristics
- Type
- IP44
- Configuration
- centrifugal
- Supply voltage
- 230VAC
- Drive mechanism
- electrically-powered
- Material
- plastic
- Other characteristics
- backward curved
- Diameter
175 mm
(6.89 in)- Rotational speed
2,500 rpm, 2,600 rpm
(15,708 rad.min-1, 16,336 rad.min-1)- Noise level
60 dB, 62 dB
Description
• Impeller material: PA plastic + 30% glass fiber
• Direction of rotation: clockwise, seen on rotor
• Type of protection: IP44
• Insulation class: B
• Mode of operation: continuous operation (S1)
• Bearing: ball bearings
• Motor protection: - self-resetting TOP wired internally
