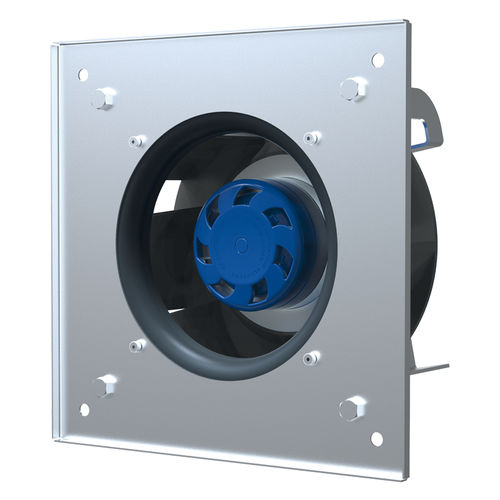

Backward curved fan GL-B133A-EC-03centrifugal230VACelectrically-powered
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Supply voltage
- 230VAC
- Drive mechanism
- electrically-powered
- Material
- steel
- Other characteristics
- backward curved
- Diameter
175 mm
(6.89 in)- Rotational speed
4,780 rpm
(30,034 rad.min-1)- Noise level
67 dB
Description
Impeller material: PA6+GF30
Inlet ring material: sheet steel
Casing material: sheet steel, painted gray
Direction of rotation: clockwise, seen on rotor
Insulation class: B
Mode of operation: continuous operation (S1)
Bearing: ball bearings
Motor protection: self-resetting TOP wired internally
