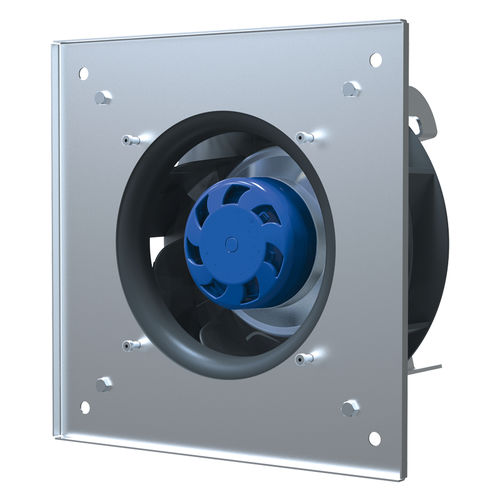

IP44 fan GL-B190B-EC-25centrifugal230VACelectrically-powered
Add to favorites
Compare this product
Characteristics
- Type
- IP44
- Configuration
- centrifugal
- Supply voltage
- 230VAC
- Drive mechanism
- electrically-powered
- Material
- steel
- Other characteristics
- backward curved
- Diameter
190 mm
(7.48 in)- Rotational speed
2,600 rpm, 3,000 rpm
(16,336 rad.min-1, 18,850 rad.min-1)- Noise level
60 dB, 65 dB
Description
Impeller material: PA6+GF30
Inlet ring material: PA6+GF30
Casing material: sheet steel, painted gray
Direction of rotation: clockwise, seen on rotor
Insulation class: B
Mode of operation: continuous operation (S1)
Bearing: ball bearings
Motor protection: self-resetting TOP wired internally
