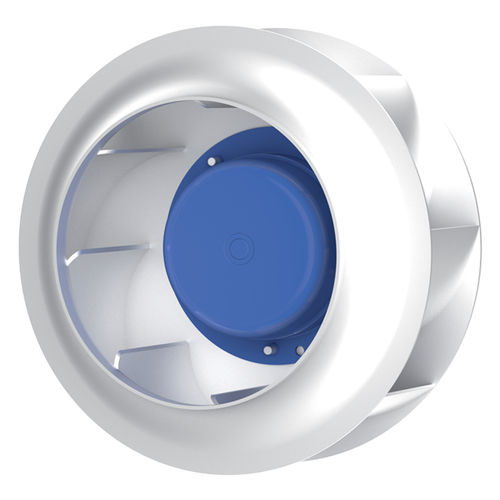

Backward curved fan BL-B250E-EC-05IP55centrifugal230VAC
Add to favorites
Compare this product
Characteristics
- Type
- IP55
- Configuration
- centrifugal
- Supply voltage
- 230VAC
- Drive mechanism
- electrically-powered
- Material
- aluminum
- Other characteristics
- backward curved
- Diameter
250 mm
(9.843 in)- Rotational speed
3,650 rpm
(22,934 rad.min-1)- Noise level
85 dB
Description
Impeller material: sheet aluminium
Speed control: 0 ~ 10V DC/PWM
Direction of rotation: clockwise, seen on rotor
Insulation class: B
Mode of operation: continuous operation (S1)
Bearing: ball bearings
Motor protection: self-resetting TOP wired internally
