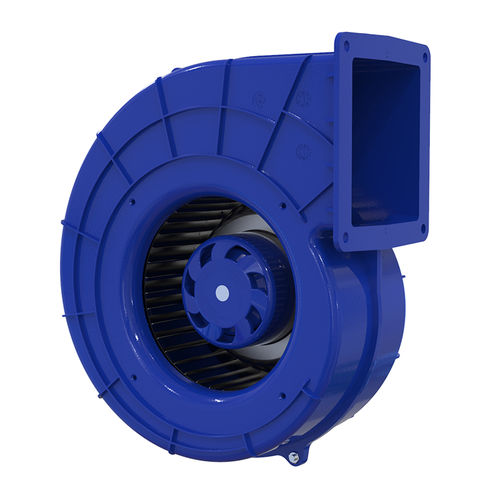

Air blower SL-F140B-EC-08centrifugalsingle-stage230V / 50Hz
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- centrifugal
- Number of stages
- single-stage
- Voltage / frequency
- 230V / 50Hz, 230V / 60Hz
- Other characteristics
- with forward-curved blades
- Flow
490 m³/h
(17,304.187 ft³/h)- Nominal power
85 W
(0.116 hp)- Length
225.4 mm
(8.87 in)- Depth
97.6 mm
(3.8 in)- Height
266 µm
Description
• Impeller material: galvanized steel
• Casing material: PP Lupol GP
• Direction of rotation: clockwise, seen on rotor
• Type of protection: IP55
• Insulation class: B
• Mode of operation: continuous operation (S1)
• Bearing: ball bearings
• Motor protection: self-resetting TOP wired internally
